The Svelte Suite is a lithe partition system designed to physically divide without visually separating interior spaces. With a tiny 20mm reveal on the vertical and 20mm reveal on the horizontal, the Svelte Suite embodies slender elegance and is the slimmest partition system available.
With a universal glazing pocket, the Svelte Suite has the smallest reveal possible to comply with the AS1288 glazing code for glass up to 12.8mm thick. The Svelte Suite features offset and double-glazing aluminium frames which can be continued to create infinite design solutions.

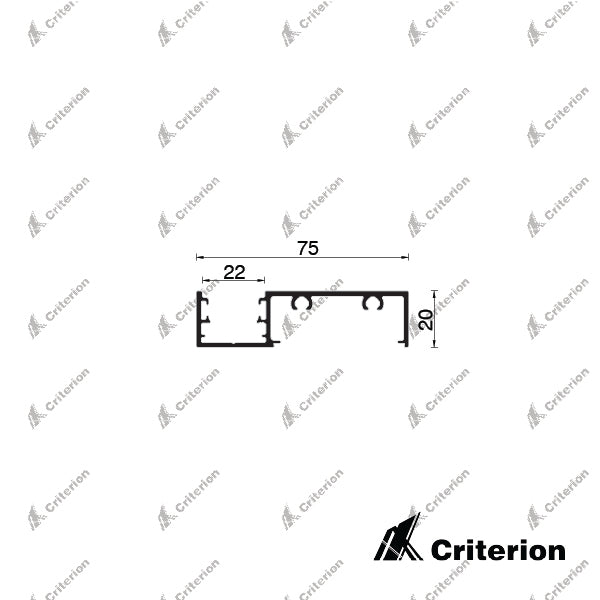

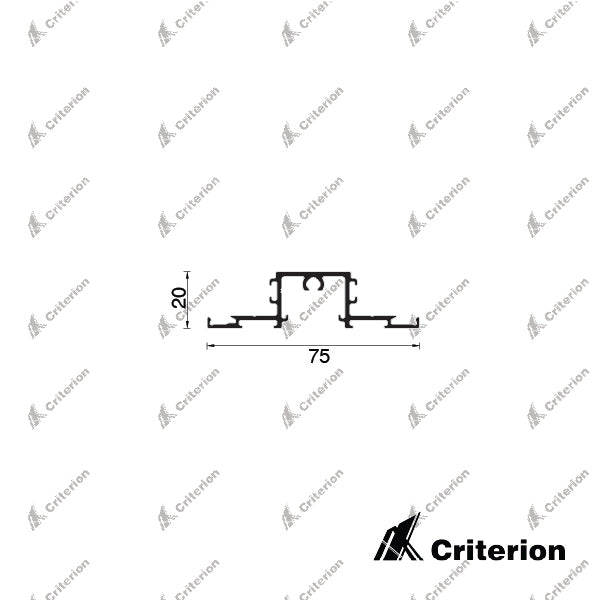

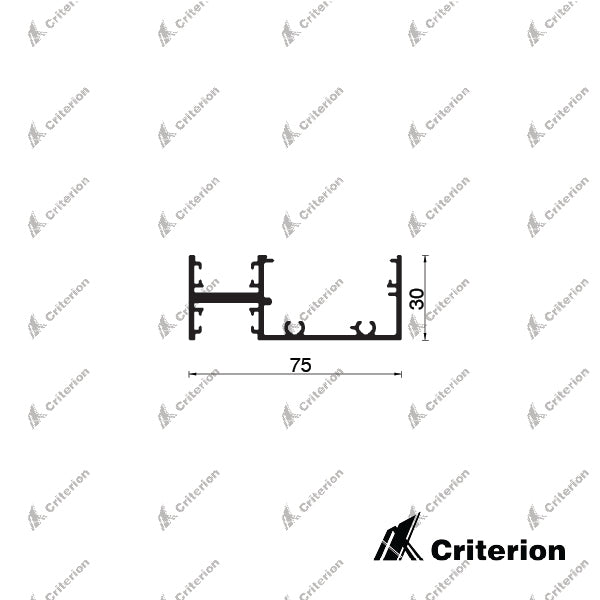

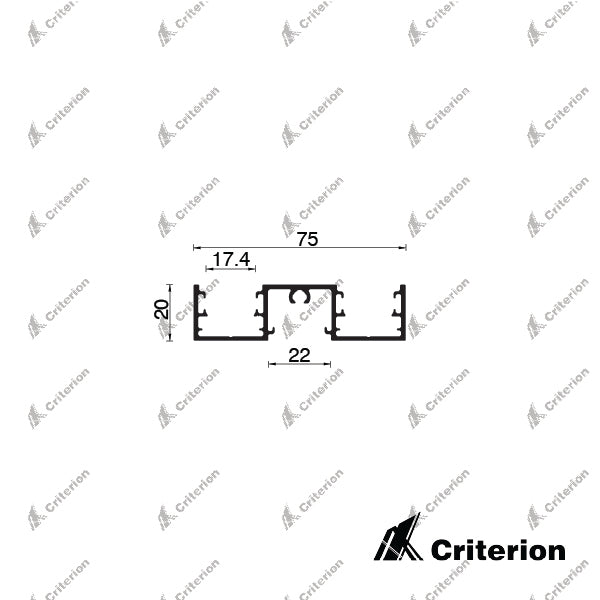

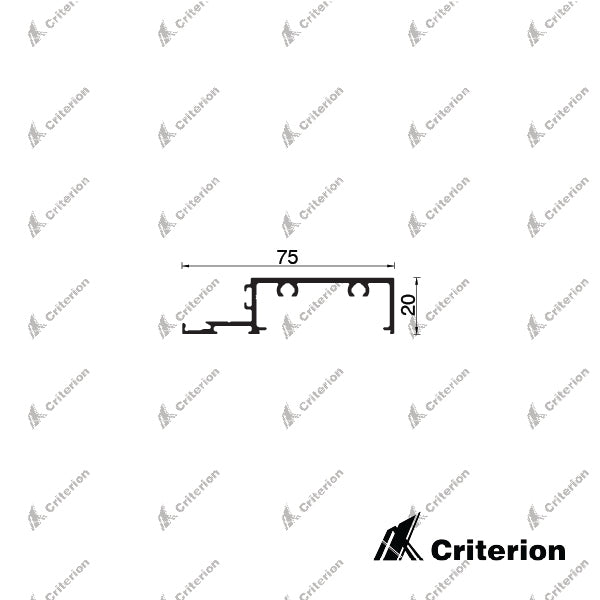

Svelte 75 is a cross functional suite providing an excellent solution for both hinged and sliding doors with a front glazed option or double glazed option.
The Svelte double glaze partition achieves an RW48 acoustic rating.
The Svelte system features a Stick-On Mullion which can be used to create the ‘glasshouse look’ without additional glazing.
12.5mm & 10.5mm VLam Hush Glass - Double Glazed - RW48
12.38mm & 10.38 Laminated Glass - Double Glazed - RW46
12.5mm VLam Hush Glass - Offset Glazed - RW37
12.38mm Laminated Glass - Offset Glazed - RW34
